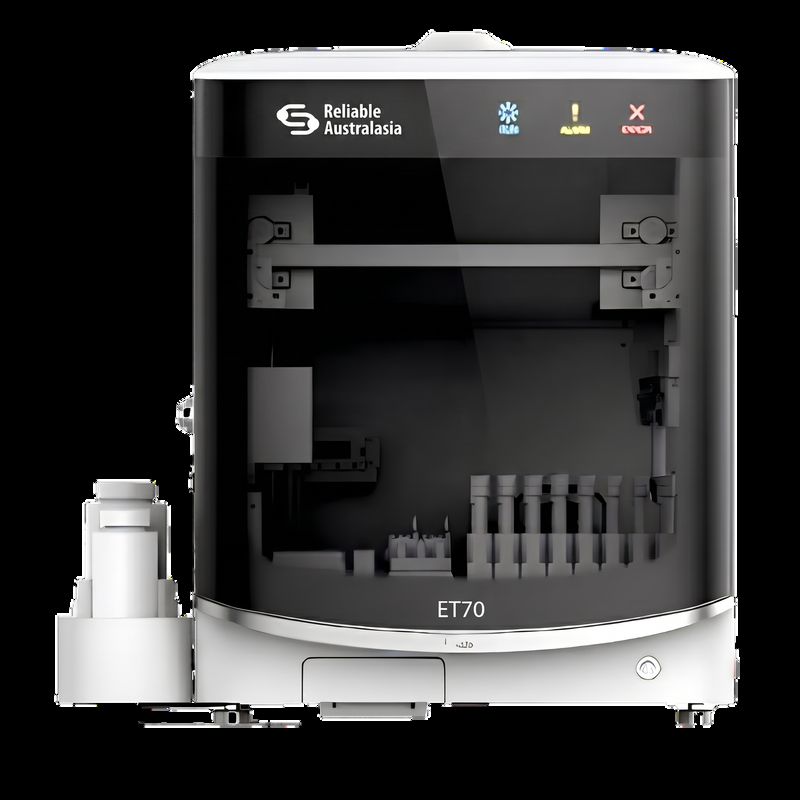

ET70 Automated Sample Pre-Processing System
Automated aliquoting, dilution and mixing for blood and urine samples, feeding straight into ICP-MS, LC-MS/MS and GC-MS workflows. Up to 96 tubes per run, with the manual pipetting step removed.
The step before the instrument
Sample preparation is where throughput is lost and where variability creeps into a result that the mass spectrometer will faithfully reproduce. Manual aliquoting and dilution is slow, it is hard to audit, and its reproducibility depends on who is at the bench that day.
The ET70 automates that front end. Tubes are scanned, uncapped, mixed, aspirated, diluted and dispensed inside an enclosed environment, with liquid-level detection and reagent monitoring running throughout. What reaches your LC-MS/MS, ICP-MS or GC-MS is prepared the same way every run.
Key features
Automated front-end preparation for blood and urine, up to 96 tubes per run.
High throughput
Up to 96 sample tubes per run, unattended.
Blood and urine
Venous blood, peripheral blood and urine sediment tubes.
Precise pipetting
20 to 175 µL. Down to ±1.5% accuracy and 1.0% CV at 150 µL.
Full tube handling
Automatic barcode scan, mixing, and cap open and close.
Hands-off dilution
Automatic aspiration, dispensing and dilution.
Monitored and enclosed
Liquid and reagent level detection, self-check and fault alarms.
Key applications
- Clinical and pathology laboratories: Blood and urine preparation ahead of LC-MS/MS or ICP-MS analysis.
- Toxicology: Consistent aliquoting and dilution across large sample batches.
- Drugs of abuse screening: Repeatable preparation where throughput and auditability both matter.
- Research laboratories: Removing operator-to-operator variability from study sample sets.
Specifications
- Sample types
- Blood and urine
- Tube capacity
- Up to 96 sample tubes per run
- Sample volume
- 20 to 175 µL
- Automated steps
- Barcode scanning, tube mixing, tube opening and closing, sample aspiration and dispensing, dilution
- Monitoring
- Sample liquid-level detection and reagent-level monitoring
- Pipette tips
- Disposable, conductive or non-conductive
- Processing environment
- Enclosed
- Diagnostics
- Automatic system self-check with fault alarms
Supported tube sizes
- 13 × 75 mm venous blood tubes
- 13 × 100 mm venous blood tubes
- 17 × 100 mm urine sediment tubes
- Peripheral blood tubes approximately 8 to 10 mm diameter, 40 to 45 mm length
Gripper force and gripping range are adjustable, so minor variation in tube dimensions can generally be accommodated.
Pipetting performance
| Volume | Accuracy | Precision |
|---|---|---|
| 50 µL | ±2.0% | ≤3.0% CV |
| 100 µL | ±2.0% | ≤2.0% CV |
| 150 µL | ±1.5% | ≤1.0% CV |
Australia and New Zealand
Market introduction pricing available
We have introduction pricing for the ET70 in Australia and New Zealand. It includes:
- Standalone software adaptation
- Installation
- Initial operator training
- Workflow setup support
Pricing on application. We will send a written quotation for your configuration.
Talk to a local specialist
Tell us your sample type, tube format and throughput, and we will tell you honestly whether the ET70 fits your workflow.
